HP Color LaserJet 3600

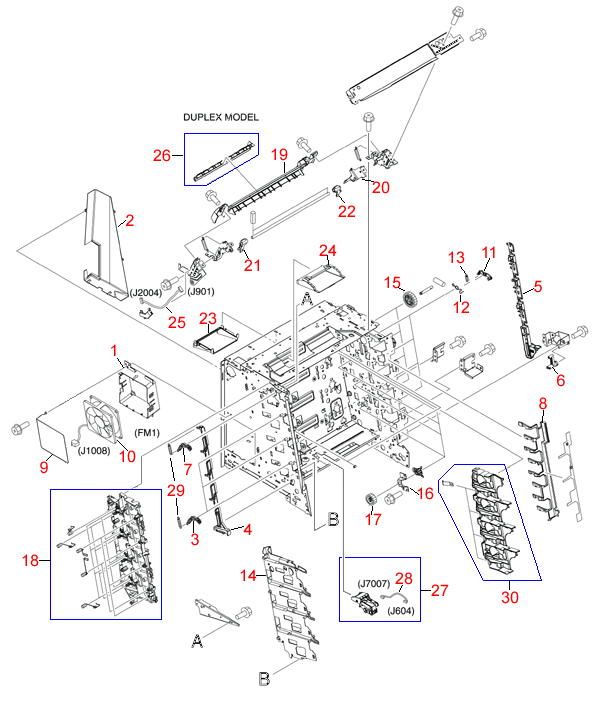

Internal Components (1 of 5) Diagram

Right Side Cartridge Guide - RM1-2771 Tension Spring - RC1-6634 Tension Spring - RC1-6634 Media Sensor Cable - RM1-2589 Media Sensor Cassette Assembly - RM1-2756 Paper Diverter - RC1-6744 Control Panel Cable - RM1-2596 Fan Duct - RC1-7548 Fan Duct - RC1-7547 Right Latch - RC1-7555 Left Latch - RC1-7554 Tension Spring - RC-7552 Paper Guide Crossmember Cover - RC1-6795 High Voltage Toner Contact Assembly - RM1-2683 Image Drive Gear - RC1-6575 Gear Bushing - RC1-6573 58 Tooth Drive Gear - RC1-6571 Left Side Cartridge Guide - RC-6629 Tension Spring - RC1-6677 Grounding Spring - RC1-6641 Right Side Lock Lever - RC1-6640 Cooling Fan - RK2-0954 Grounding Spring - RC1-7583 Right Side Lever Lock Slide Cover - RC1-6824 Black Cartridge Lever Lock - RC1-7618 Right Side Lever Slide Lock - RC1-6643 Left Side Lever Slide Lock - RC1-6636 Lock Lever - RC1-6633 Air Duct - RC1-6632 Fan Holder - RC1-6631
REF PART # DESCRIPTION
1 RC1-6631 Fan holder - Mounting assembly for main cooling fan - Located on lower left side of printer - Fan FM1
2 RC1-6632 Air duct - Deflects air from fan FM1
3 RC1-6633 Lock lever - This is the left side lock for the three color cartridges
4 RC1-6636 Lever slide lock - Slide that locks and unlocks the individual levers on the left side
5 RC1-6643 Lever slide lock - Slide that locks and unlocks the individual levers on the right side
6 RC1-6645 Right slide cam - Cam that actuates the cartridge levers and locks
7 RC1-7618 Lever lock - Left side upper lever lock for Black cartridge
8 RC1-6824 Slide cover - Covers right side lock lever slide
9 RC1-7583 Grounding spring - Provides grounding for main cooling fan - Fan FM1
10 RK2-0954 Cooling fan - Provides cooling for printer
11 RC1-6640 Lock lever - This is the right side lock for the all four toner cartridges - Four used
12 RC1-6641 Grounding spring - Provides chassis ground for toner cartridges - Four used
13 RC1-6677 Tension spring - Provides tension for right side toner cartridge lock lever - Four used
14 RC1-6629 Cartridge guide - Left side guide assembly for toner cartridges
15 RC1-6571 58 tooth drive gear - Located between the toner motor and image drive assembly - Fout used
16 RC1-6573 Gear bushing - Located between 29 tooth image drive gear and chassis on right side of printer
17 RC1-6575 Image drive gear - 29 tooth image drive gear - Located inside chassis on right side of printer
18 RM1-2683 High voltage toner contact assembly - Electrical contacts for all four toner cartridges
19 RC1-6795 Paper guide cross member cover - Used as a support to help guide paper through the paper path - Located inside near top of printer
20 RC1-7552 Tension spring - Provides tension for right and left paper guides directly under the control panel - Two used
21 RC1-7554 Left latch - Left side paper guide/latch directly under control panel
22 RC1-7555 Right latch - Right side paper guide/latch directly under control panel
23 RC1-7547 Fan duct - Diverts air from Fan 1 near the back of printer - Duct 2
24 RC1-7548 Fan duct - Diverts air from Fan 1 to front of printer and helps cool the Low Voltage Power Supply (LVPS) - Duct 3
25 RM1-2596 Control panel cable - From control panel to High Voltage Power Supply (HVPS)
26 RC1-6744 Paper diverter - Diverts the paper so that it is redirected back into the machine and goes through the duplex paper path
27 RM1-2756 Media sensor - Senses both the thickness and paper type used
28 RM1-2589 Media sensor cable - Cable between Tray 2 media type sensor and Relay PCA
29 RC1-6634 Tension spring - Spring that connects between the cartridge locks and the slider plate on left side of printer - Four used
30 RM1-2771 Cartridge guide - Right side guide assembly for toner cartridges
