HP Color LaserJet 3700

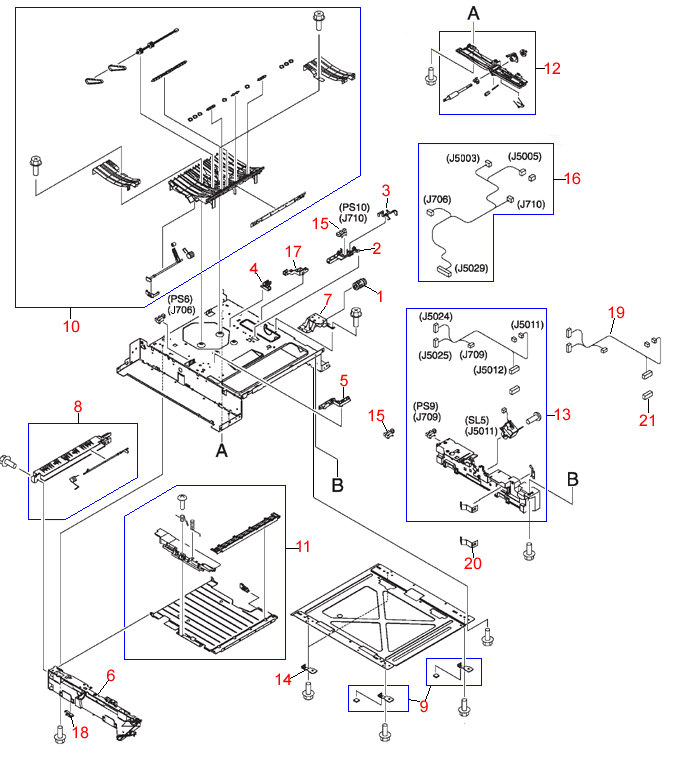

Lower Frame Assembly Diagram

Solenoid - RK2-0143 Grounding Plate - RC1-1508 Option Connection Cable - RM1-0476 Grounding Plate - RC1-1637 Cable Guide - RC1-1306 Lower Frame Cable - RM1-0478 Photo Sensor - WG8-5624 Photo Sensor - WG8-5624 Rear Support Foot - RC1-2428 Right Side Cassette - RM1-0736 Right Side Paper Feed Guide Assembly - RM1-0462 Duplexer Feed Guide Assemlby - RM1-0461 Paper Feed Guide Assemlby - RM1-0460 Front Support Foot - RM1-0459 Front Support Foot - RM1-0459 Duplexer Guide Assembly - RM1-0458 Solenoid Mount - RL1-0203 Left Cassette Guide - RC1-1491 Cable Guide - RC1-2323 Cable Guide - RC1-2332 Sensor Holder - RC1-1496 Clutch - RB2-6324
REF PART # DESCRIPTION
1 RB2-6324 Clutch
2 RC1-1496 Sensor holder - Holder for duplex paper feed sensor (PS10) assembly
3 RC1-1514 Sensor lever - Lever that activates duplex paper feed sensor (PS10)
4 RC1-2322 Cable guide - Cable guide on right rear portion of lower frame assembly - Black plastic 90 degree bend guide
5 RC1-2323 Cable guide - Cable guide on left middle portion of lower frame assembly - Black plastic double 90 degree bend guide
6 RC1-1491 Left cassette guide - Left side cassette guide for 250 sheet Tray 2
7 RL1-0203 Solenoid mount
8 RM1-0458 Duplexer guide assembly - Flipper guide assembly at bottom back of printer - Directs paper to duplexer path
9 RM1-0459 Front support foot - Black plastic support foot for front of Tray 2 - Two used
10 RM1-0460 Paper feed guide assembly - Paper guide assembly in bottom of printer
11 RM1-0461 Duplexer feed guide assembly - Paper guide at bottom of printer for duplexer paper path
12 RM1-0462 Right side paper feed guide assembly for duplexer - Position guide for duplexer
13 RM1-0736 Right cassette guide - Right side cassette guide for 250 sheet Tray 2
14 RC1-2428 Rear support foot - Black plastic support foot for rear of Tray 2 - Two used
15 WG8-5624 Photo-sensor (TLP1241) - Sensor flag activated - Optical sensors used in pickup/feed assembly - Used for PS1, PS4 and PS16
16 RM1-0478 Lower frame cable - Cable under 250 sheet tray/Tray 2
17 RC1-1306 Cable guide - Cable guide on right side of 250 sheet/Tray 2 frame
18 RC1-1637 Grounding plate - Ground connection on bottom of left cassette guide assembly
19 RM1-0476 Option connecting cable -
20 RC1-1508 Grounding plate - Ground contact on front inside of right side 250 sheet/Tray 2 cassette guide
21 RK2-0143 Solenoid - Duplexer solenoid - SL5
