HP Color LaserJet 3800 Printer

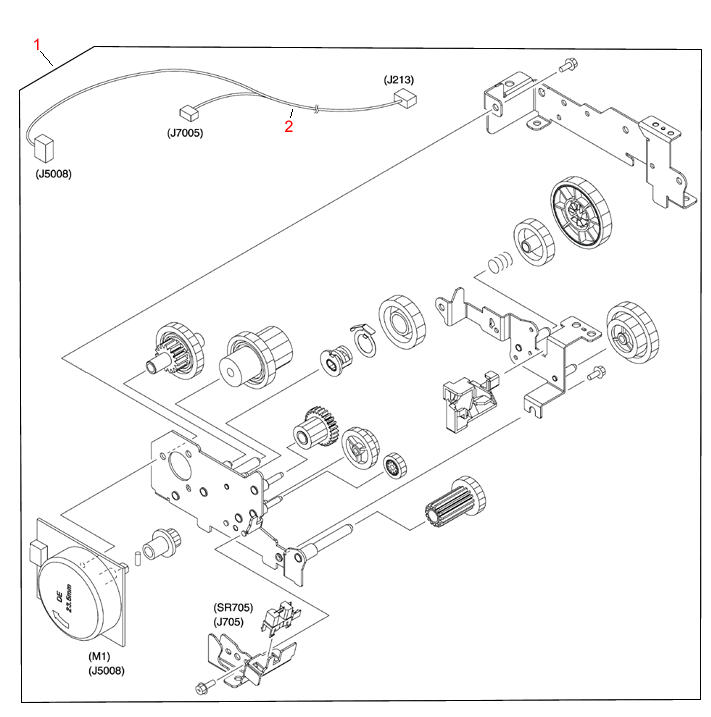

Fuser Drive Assembly Diagram

Fuser Drive Cable - RM1-2619 Fuser Drive Gear Assembly - RM1-2668
REF PART # DESCRIPTION
1 RM1-2668 Fuser drive gear assembly - Includes fuser drive motor - Motor M1
2 RM1-2619 Fuser drive cable - Connects Driver board to Fuser drive motor (M1) and Fuser pressure release sensor
