HP Color LaserJet 3800 Printer

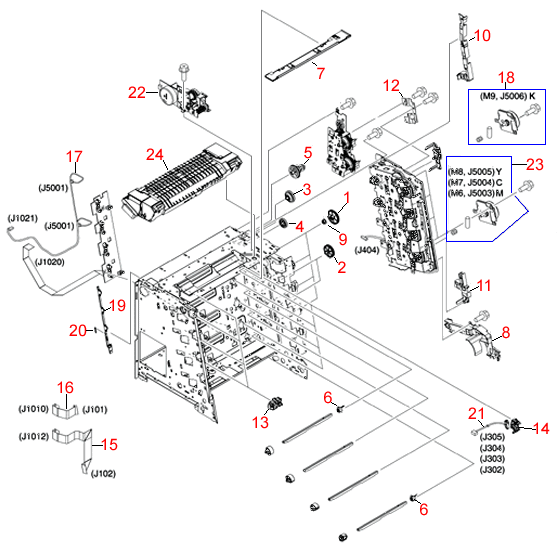

Internal Components (2 of 5) Diagram

Fusing Assembly - RM1-2665(110V) - RM1-2743(220V) Drive Motor - RM1-2689 Fuser Drive Gear Assembly - RM1-2668 Memory Tag Cable - RM1-2627 Tension Spring - RC1-7598 Sensing Lever - RC1-7597 Drive Motor - RM1-2773 Scanner Cable - RM1-2594 Scanner Cable - RK2-0967 Scanner Cable - RK2-0971 Right Side Toner Cartridge Holder - RC1-6771 Left Side Toner Cartridge Shutter Cover - RC1-6651 Drive Plate Cross Member - RC1-7576 Right Side Cable Guide - RC1-7545 Upper Right Cable Guide - RC1-7544 Gear Bushing - RC1-6823 Right Side Cable Guide - RC1-6682 Upper Support Cover - RC1-6668 Alienation Flag - RC1-6605 Alienation Flag - RC1-6605 Cluster Gear - RC1-6596 31 Tooth Gear - RC1-6594 Cluster Gear - RC1-6593 41 Tooth Gear - RC1-6589 48 Tooth Cam Gear - RC1-6584
REF PART # DESCRIPTION
1 RC1-6584 Cam gear - 48 tooth gear associated with the cartridge for engaging the developing rollers - Four used
2 RC1-6589 41 tooth gear - Mechanically connects the four cartridge engaging rollers - Two used
3 RC1-6593 Cluster gear - 19 tooth/30 tooth gear mounted in gear assembly on right side of printer
4 RC1-6594 31 tooth gear - Gear located in the fuser drive assembly on top
5 RC1-6596 Cluster gear - 17 tooth/41 tooth gear mounted in gear assembly on right side of printer
6 RC1-6605 Alienation flag - Senses if the black or all the color cartridges are in the proper position - Two used
7 RC1-6668 Upper support cover - This is black plastic under the sheet metal that is under the fuser
8 RC1-6682 Right side cable guide - Located in the bottom right side of the printer - Round molded part fits over a motor - Black plastic
9 RC1-6823 Gear bushing - Located between the 48 tooth cam gear and the metal chassis on the right side of printer - Four used
10 RC1-7544 Upper right cable guide - Located on top of the main drive assembly and runs vertically along the almost full length of it - Black plastic.
11 RC1-7545 Right side cable guide - Located below upper right cable guide
12 RC1-7576 Drive plate cross member - Cross member plate that attaches to duplexer separation drive assembly on right side of printer
13 RC1-6651 Shutter cover - Left side toner cartridge shutter cover - Four used
14 RC1-6771 Toner cartridge holder - Plastic support for right side of toner cartridge - Four used
15 RK2-0971 Scanner cable - Long flat scanner cable
16 RK2-0967 Scanner cable - Short flat scanner cable
17 RM1-2594 Scanner cable - Cable between scanner motors and DC controller PCA
18 RM1-2773 Drive motor - Print cartridge drive motor assembly
19 RC1-7597 Sensing lever - This device senses when the packaging material is removed from the toner cartridges
20 RC1-7598 Tension spring - Provides tension for sensing lever on left side of printer
21 RM1-2627 E-label or memory tag cable
22 RM1-2668 Fuser drive gear assembly - Includes fuser drive motor - Motor M1
23 RM1-2689 Drive motor - Print cartridge drive motor assembly
24 RM1-2665

RM1-2743		 Fusing assembly 100/120VAC - Bonds toner to paper with heat

Fusing assembly - 220/240VAC - Bonds toner to paper by heat
