HP LaserJet 9050

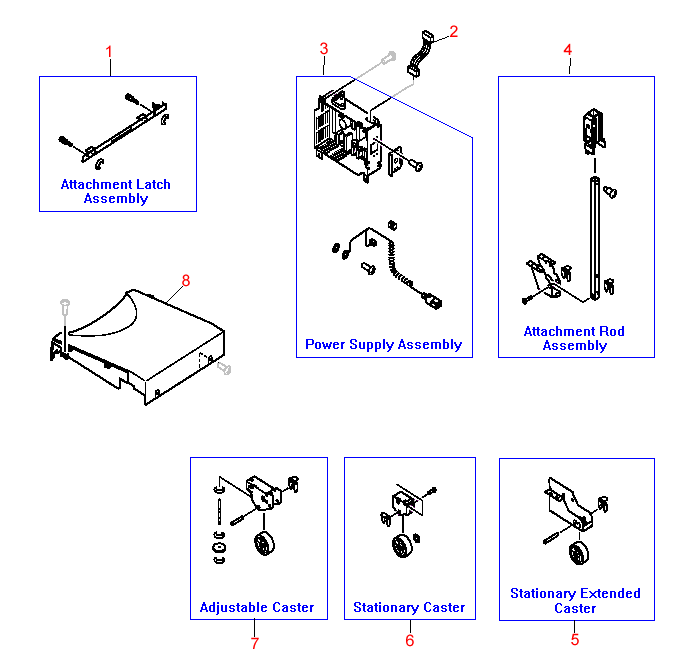

Multifunction Finisher Mounting Hardware Diagram

Foot Cover - 4F1-2090 Adjustable Caster - 4G1-5175 Stationary Caster - 4G1-5174 Stationary Extended Caster - 4G1-5178 Attachment Rod Assembly 4G1-5252 Power Supply Assembly - 4G1-5170 Low Voltage Power Supply Cable - 4H1-6581 Attachment Latch Assembly - 4G1-4988
REF PART # DESCRIPTION
1 4G1-4988 Attachment latch assembly - Includes the latch plate and two captive thumb screws - Used to secure the stacker or multifunction finisher to the printer - Mounts on the right side of the multifunction finisher
2 4H1-6581 Low voltage power supply cable - Connects between the power supply and the DC controller PC board
3 4G1-5170 Power supply assembly - Provides +24VDC for solenoids and motors, and +5VDC for the control PC board and sensors - Includes the metal card cage and attached AC power cord - Mounts on the rear of the multifunction finisher just below the control PC board
4 4G1-5252 Attachment rod assembly - Includes the mounting bracket, attachment rod and the slide on plastic latch - Aligns the stacker or multifunction finisher to the printer - Mounts on the bottom right of the multifunction finisher
5 4G1-5178 Stationary extended caster - Mount on the right rear of the multifunction finisher
6 4G1-5174 Stationary caster - Non-adjustable caster - Mounts on the bottom front right of the multifunction finisher
7 4G1-5175 Adjustable caster - Adjustable height/leveling caster - Mounts on the left front and rear support arms of the multifunction finisher (two used)
8 4F1-2090 Foot cover - Plastic panel that covers the bottom support arms and casters - Mounts toward the bottom of the multifunction finisher
