HP LaserJet 1300

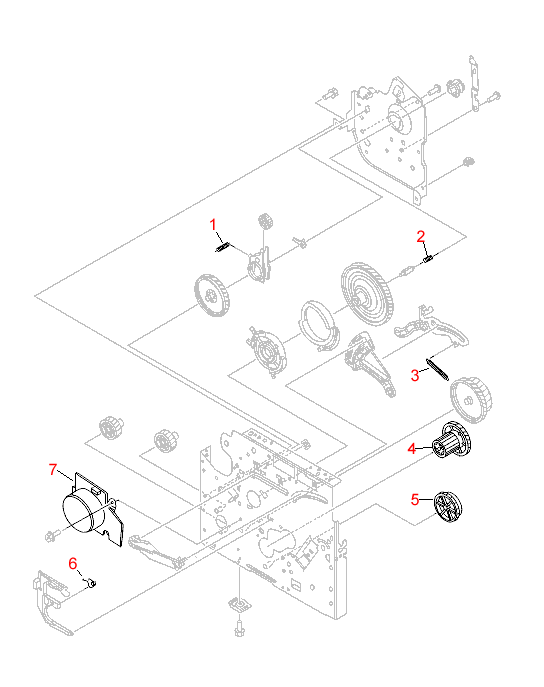

Right Side Plate Assembly Diagram

DC Stepper Motor Assembly - RK2-0062 Torsion Spring - RA0-1026 41 Tooth Gear - RC1-1755 87 Tooth/ 23 Tooth Reduction Gear - RC1-1752 Tension Spring - RA0-1212 Compression Spring - RA0-1012 Tension Spring - RA0-1006
REF PART # DESCRIPTION
1 RM1-0527 Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism
2 RA0-1006 Tension spring - Provides tension for the floating gear holder (drive gear for the fusing assembly) - Mounts on the right side plate assembly
3 RA0-1012 Compression spring - Grounds the pin in the toner cartridge drive gear - Mounts on the right side plate assembly
4 RA0-1212 Tension spring - Provides tension for the linkage which engages the toner cartridge drive gear - Mounts on the right side plate
5 RC1-1752 87 tooth / 23 tooth dual gear assembly (Reduction gear) - Drives the optional lower paper tray gear and the paper feed roller gear - Mounts on the right side plate assembly
6 RC1-1755 41 tooth gear - Used to drive the optional lower paper tray - Mounts toward the bottom of the right side plate
7 RA0-1026 Torsion spring - Provides grounding connection to the toner cartridge (photo sensitive drum) - Mounts on the inside of the right side plate assembly
8 RK2-0062 DC stepper motor assembly - Drives all rollers and fusing assembly via the gear train on the right side plate - Mounts on the inside rear of the right side plate
