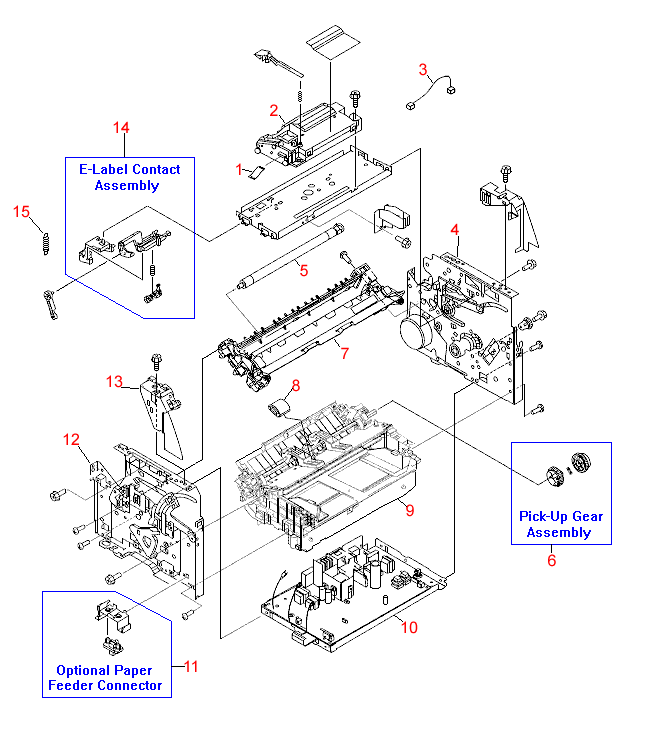

| REF |
PART # |
DESCRIPTION |
| 1 |
RK2-0029 |
Flex cable - Has two 14-pin (M) edge
connectors - From laser/scanner assembly to formatter board |
| 2 |
RM1-0524 |
Laser/scanner assembly - Mounts on
top of the print structure frame |
| 3 |
RM1-0563 |
Cable assembly - 4-pin (F) connector
to 4-pin (F) connector - Scanner motor cable - From laser/scanner
assembly to formatter board |
| 4 |
RM1-0527 |
Right side plate assembly - Includes
the right side plate, drive motor, most all drive gears, and cam
levers - Does not come with the pickup roller solenoid or 69 tooth
gear - Right side of the internal printer mechanism |
| 5 |
RM1-0550 |
Transfer roller assembly - Transfers
static charge to the media being printed on - Mounts in the top of
the paper feed guide assembly |
| 6 |
RM1-0551 |
Gear/clutch assembly kit - Includes
double-gear body, shaft attachment piece and spring - For driving
the paper feed roller |
| 7 |
RM1-0530 |
Paper feed guide assembly - Support
structure for the transfer roller - Black plastic frame with metal
guide plates and the left high voltage contact springs for the
toner cartridge - Mounts behind the paper pickup assembly (below
the toner cartridge) |
| 8 |
RL1-0303 |
Paper pickup roller (D-shaped
roller) - Picks up media from the paper input tray - Clips in the
holder on the paper pickup shaft |
| 9 |
RM1-0531 |
Paper pickup assembly - Includes
separation pad, plastic housing and other associated parts - Does
not include the pickup roller and paper feed roller assembly -
Mounts in the bottom of the printer |
| 10 |
RM1-0564 |
Engine control PC board - Control
and power supply board for the printer (For 110V to 127V
operation) - Includes the power cord connector and power switch -
Mounts in the bottom of the printer |
| RM1-0565 |
Engine control PC board - Control
and power supply board for the printer (For 220V to 240V
operation) - Includes the power cord connector and power switch -
Mounts in the bottom of the printer |
| 11 |
RM1-0529 |
Connector and holder assembly - To
interconnect the optional lower paper tray to the printer - Mounts
on the left side frame assembly |
| 12 |
RM1-0528 |
Left plate assembly - Left side of
internal printer mechanism - Plate that the formatter PC board
mounts to |
| 13 |
RM1-0549 |
Control panel assembly - Includes
the 'Go' button and LED, 'Ready' LED, and 'Attention' LED mounted
on the left front cover support - Mounts on the upper left corner
of the left side plate |
| 14 |
RM1-0542 |
E-label contact and holder assembly
- Contacts the non-volatile memory in the toner cartridge - Mounts
on the bottom of the laser/scanner support shelf |
| 15 |
RU5-2143 |
Tension spring - Provides upward
pressure on the linkage to swing the e-label contact assembly back
when the toner cartridge access door is open |
