HP LaserJet 1320

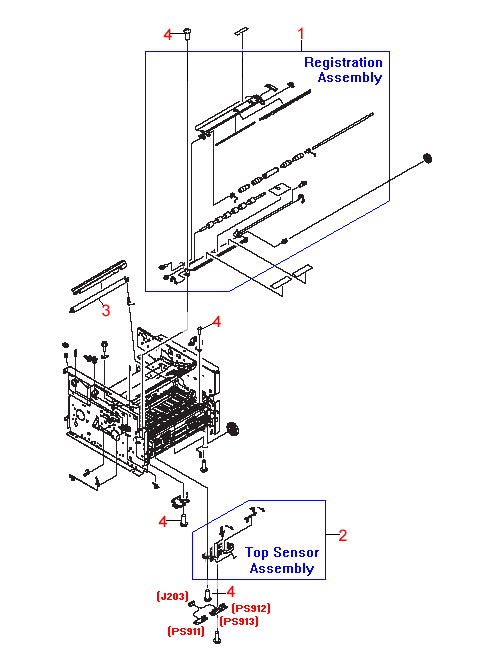

Internal Components (3 of 4) Diagram

M4 Truss Head Screw - XB4-7401 M4 Truss Head Screw - XB4-7401 M4 Truss Head Screw - XB4-7401 M4 Truss Head Screw - XB4-7401 Transfer Roller Assembly - RM1-1471 Top Sensor Assembly - RM1-1283 Registration Roller Assembly - RM1-1281
REF PART # DESCRIPTION
1 RM1-1281 Registration roller assembly - Includes the frame, the two roller assemblies, and the upper transfer guide - Mounts in the front middle of the print engine assembly
2 RM1-1283 Top sensor assembly - Includes the bracket and flags for the top of page detection sensor (PS912), and paper width detection sensor (PS913) - Mounts behind the registration roller assembly
3 RM1-1471 Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in front of the paper feed guide assembly
4 XB4-7401 M4 truss head (flanged) screw - 10mm long - Typically used to secure plastic parts to the left and right side plates
