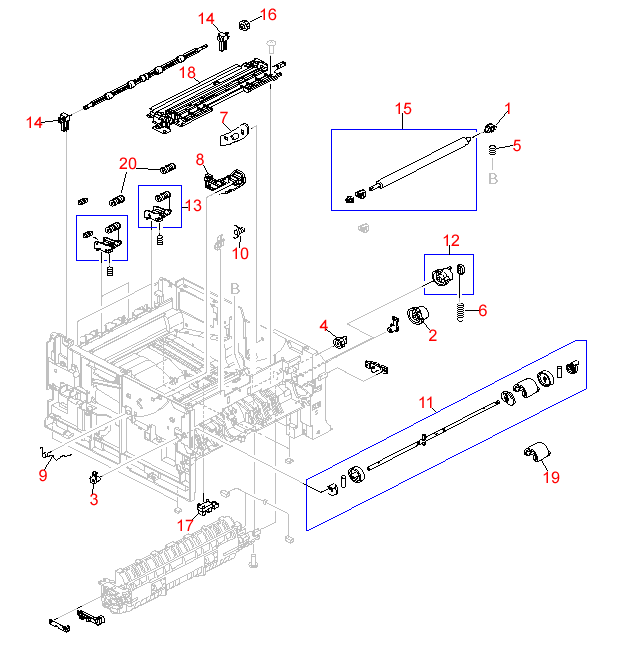

HP LaserJet 2200
Internal Components (3
of 5) Diagram
| REF | DESCRIPTION | |
|---|---|---|
| Transfer roller bushing - Supports right side of transfer roller | ||
| Gear - 26 tooth - Tray 1 pickup roller drive gear | ||
| Left roller bushing - Acts as the bearing and retainer for the left end of the paper pickup roller assembly (tray 1) | ||
| Registration roller drive gear - 14 tooth - Gear - 14 tooth - Drives registration roller | ||
| Compression spring - Provides tension for right side of transfer roller bushing | ||
| Tensioning spring - For the paper pickup gear assembly | ||
| Cartridge guide - Right side toner cartridge guide | ||
| Cartridge guide - Left side toner cartridge guide | ||
| Compression spring - Provides electrical ground connection | ||
| Torsion spring - Provides a small amount of back pressure for the paper sensor flag | ||
| Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin | ||
| Cassette pickup gear assembly | ||
| Delivery roller kit - Includes all face-down delivery roller assemblies, upper delivery roller supports, and roller drive gear | ||
| Upper delivery roller bushing - Roller bushing - Supports face-down upper delivery roller | ||
| Transfer roller assembly - Includes left side bushing | ||
| Upper delivery roller drive gear - 15 tooth - Drive gear - Upper delivery roller drive gear - 15 tooth | ||
| Sensor PC board - Small board with flag activated photo sensor - Photo sensor (PS3208) - Top of page registration sensor | ||
| Registration assembly - Registration shutter and roller with holder frame assembly | ||
| Pickup roller - MP/TRAY 1 pickup roller | ||
| Face-down delivery roller - Lower rollers - Four used |
