HP LaserJet 5200

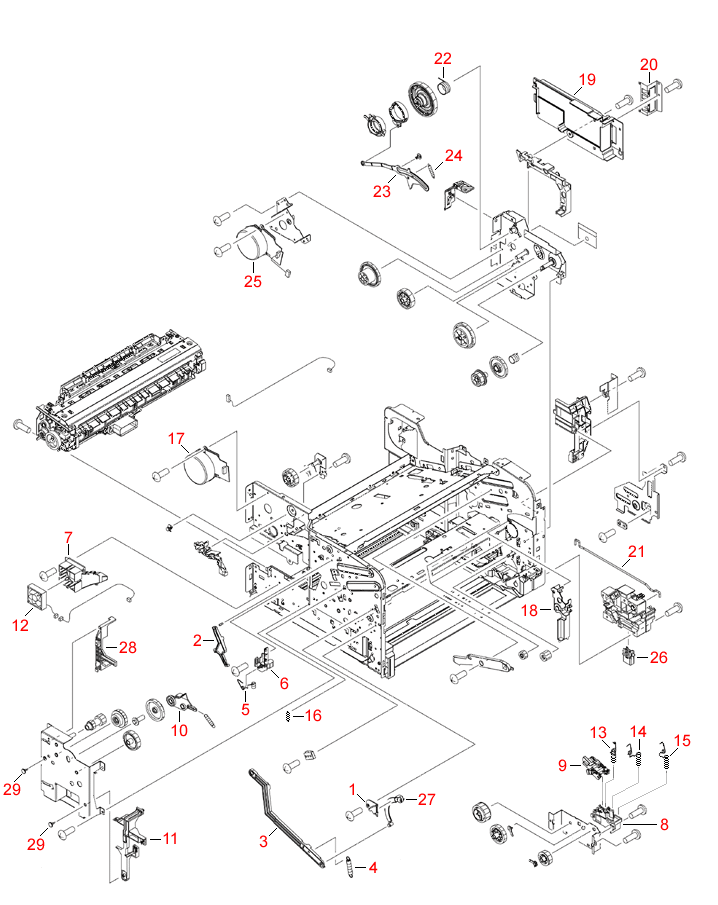

Internal Components (2 of 3) Diagram

Bushing arm stopper - RC1-3090 Bushing arm stopper - RC1-3090 Paper-delivery release lever - RC1-7408 Cartridge door stopper - RC1-7023 Drawer connector - VS1-7258 Main motor - RM1-2516 Tension spring - RU5-2632 Coupling lever - RC1-7285 Compression spring - RU5-2630 Power switch rod - RC1-7226 Grounding plate connector - RC1-7220 DC controller board - RC1-7217 Gear assembly cover - RC1-7020 Fusing assembly drive motor - RM1-2538 Tension spring - RU5-2591 Compression spring - RU5-2589 Compression spring - RU5-2588 Compression spring - RU5-2587 Cooling fan - RK2-1091 Release lever - RC1-7406 Swing plate - RC1-7403 Contact holder cover - RC1-7265 Contact holder - RC1-7241 Fan holder - RC1-7169 Contact holder - RC1-7128 Compression spring - RC1-7127 Tension spring - RU5-2550 Release arm - RC1-7405 Lock arm - RC1-7244 Door stop guide - RC1-7022
REF PART # DESCRIPTION
1 RC1-7022 Door stop guide - Cartridge door stop guide - Allows the cartridge door to open to maximum open position - Supports cartridge door stopper on left side
2 RC1-7244 Lock arm - Connects to cartridge door stop to protect the grounding bias contact pins
3 RC1-7405 Release arm - Fuser release arm - Provides mechanical link between fuser release lever and cartridge door
4 RU5-2550 Tension spring - Provides tension for fuser release lever
5 RC1-7127 Compression spring - Fuser bias contact for fuser grounding
6 RC1-7128 Contact holder - Holds the bias contact for fuser grounding
7 RC1-7169 Fan holder - Mount for fan on left side of printer
8 RC1-7241 Contact holder - Holds fuser bias contacts
9 RC1-7265 Contact holder cover - Fuser bias contact cover
10 RC1-7403 Swing plate - Diverter plate for simplex to duplex media path
11 RC1-7406 Release lever - Fuser release lever on left side of printer
12 RK2-1091 Cooling fan - Fan located on upper left side of printer
13 RU5-2587 Compression spring - Electrical contact spring for toner cartridge
14 RU5-2588 Compression spring - Electrical contact spring for toner cartridge
15 RU5-2589 Compression spring - Electrical contact spring for toner cartridge
16 RU5-2591 Tension spring - Provides tension for fuser release lever
17 RM1-2538 Fusing assembly drive motor
18 RC1-7020 Gear assembly cover - Cover for top of lower right gear assembly
19 RC1-7217 DC controller board cover on right side of printer
20 RC1-7220 Grounding plate connector - Electrical connection for DC controller board cover
21 RC1-7226 Power switch rod - Mechanical link between power switch on printer and DC controller board
22 RU5-2630 Compression spring - Provides pressure for gear pack at lever arm that couples the drive gear to the toner cartridge
23 RC1-7285 Coupling lever - Lever arm that couples the drive gear to the toner cartridge
24 RU5-2632 Tension spring - Provides tension for lever arm that couples the drive gear to the toner cartridge
25 RM1-2516 Main motor - Drives gears in main drive assembly
26 VS1-7258 Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other
27 RC1-7023 Door stop - Cartridge door stop arm - Also connects to fuser release lever arm
28 RC1-7408 Release lever - Paper release lever for delivery roller assembly - Upper left side of printer
29 RC1-3090 Stop - Bushing stop for fuser lever on inside upper front of printer - Door 1 arm - Two used
