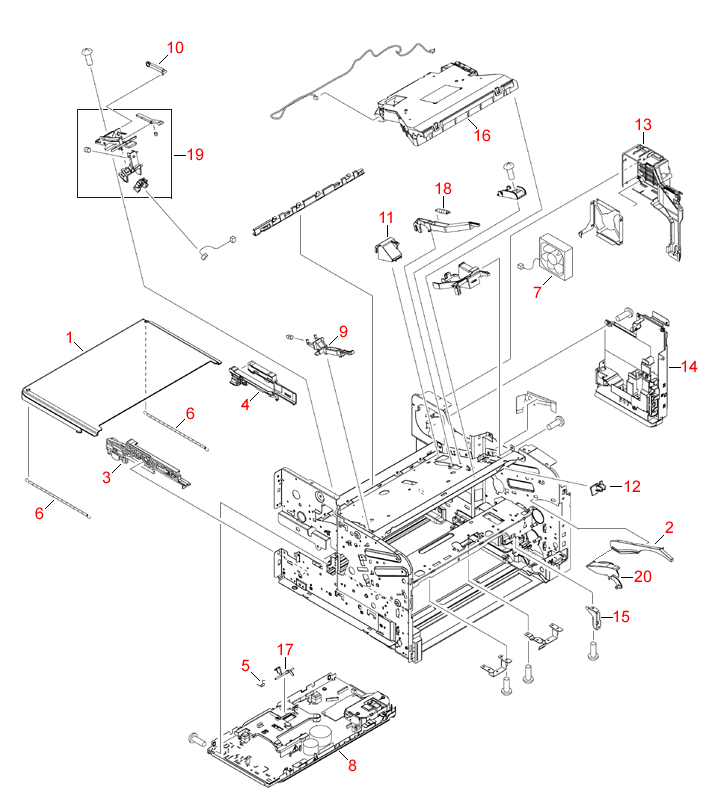

HP LaserJet 5200
Internal Components (3
of 3) Diagram
| REF | DESCRIPTION | |
|---|---|---|
| Dust cover | ||
| Cartridge guide - Lower right side toner cartridge guide | ||
| Left side duplexer assembly guide - Guide for duplexer assembly to slide in and out of printer | ||
| Right side duplexer assembly guide - Guide for duplexer assembly to slide in and out of printer | ||
| Torsion spring - Provides radial tension for loop sensor flag located on the high voltage power supply | ||
| Tension spring - Provides tension to the dust cover to retract back to its home position | ||
| Low voltage power supply cooling fan - Located on upper right side of printer above low voltage power supply | ||
| High voltage power supply PC Board - 110/127VAC input voltage | ||
| High voltage power supply PC Board - 220/240VAC input voltage | ||
| Tag link - This is an arm extension for a mechanical movement - It allows the printer to read the toner cartridge supplies status | ||
| Tag link lock - An arm extension for a mechanical movement - Allows the printer to read the toner cartridge supplies status | ||
| Shutter lever - Connects to laser shutter | ||
| Shutter lever cover - Covers front of shutter lever | ||
| Fan housing - Housing mount and duct for low voltage power supply fan | ||
| Low voltage power supply PC Board - 100/127VAC 60Hz | ||
| Low voltage power supply PC Board - 220-240VAC, 50Hz | ||
| Cross member auxiliary plate | ||
| Laser/Scanner assembly - Mounts on the support structure in the print engine frame assembly | ||
| 17 | RC1-7144 | Loop sensor flag - Tracks the paper tension during its movement in the paper path of the printer |
| 18 | RU5-2651 | Tension spring - Provides tension for shutter lever |
| 19 | RM1-2514 | Tag Holder Assembly |
| 20 | RC1-7209 | Upper Right Gear Cover |
