HP LaserJet 8100

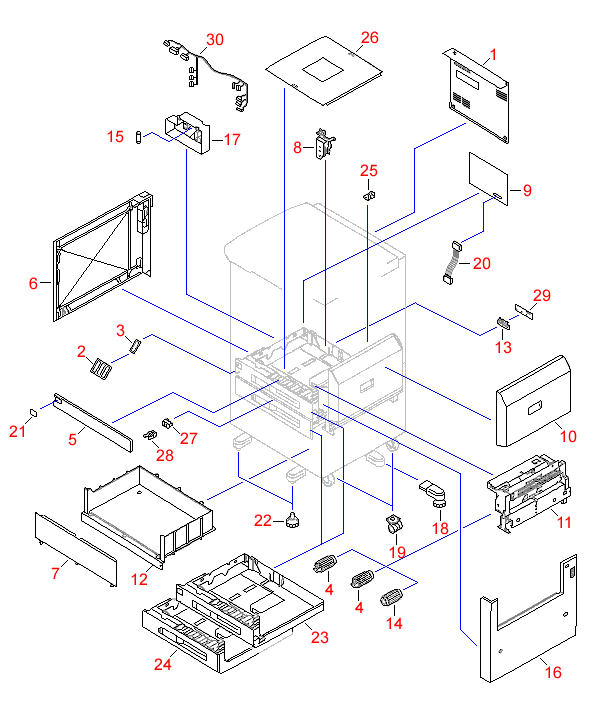

2 X 500 Input Tray Diagram

Main cable - RG5-4440 Paper size sensor board - RG5-1845 Door latch insert - XZ9-0379 Latch spacer - RB2-3705 Paper tray top cover - RF5-2766 Positioning pin - RF5-2556 Tray 5 assembly - R98-1006 Tray 4 assembly - R98-1007 Outrigger adjustable foot - RG5-4203 Front LED PCA - RG5-4441 Power supply cable - RG5-3909 Caster wheel - XZ9-0442 Outrigger - RG5-4205 Universal power supply - RG5-4021 Right side cabinet cover - RB2-3666 Power supply fuse - VD7-1893 Pickup roller - RF5-2708 Holder size PCA - RB2-3667 Paper storage tray - RB2-3669 Paper pickup - C4780-69505 Vertical feed assembly - C4780-69503 Controller PCA - RG5-4442 Paper deck drive assembly - RG5-4416 Paper storage tray front cover - RB2-3668 Left cover - RF5-2764 Front top cover - RF5-2762 Feed/separation roller - RF5-1834 Feed/separation roller - RF5-1834 Paper cassette size plate - RB1-6894 Tray size label - RB2-5342 Back cover - RB2-3675
REF PART # DESCRIPTION
1 RB2-3675 Back cover - Protects back of tray assembly
2 RB2-5342 2000 sheet paper tray cassette size label - C4781A paper tray cassette size label - All three sizes
3 RB1-6894 Paper cassette size plate - Self adhesive label NOT included
4 RF5-1834 Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used)
5 RF5-2762 Front top cover - Cover where the 'Status' LED is located
6 RF5-2764 Left cover - Left side cabinet cover
7 RB2-3668 Paper storage tray front cover
8 RG5-4416 Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller
9 RG5-4442 Controller PCA - 2 x 500-SHEET input tray controller PCA
10 C4780-69503 Paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input - Use with 2x500 tray
11 C4780-69505 Paper pickup - Moves paper from trays to feeder assembly
12 RB2-3669 Paper storage tray - Stores up to twenty pounds of paper
13 RB2-3667 Holder size PCA - Holder Size PCA -
14 RF5-2708 Pickup roller - Used in paper pickup assembly - 2 used
15 VD7-1893 Power supply fuse, 250V max - Power supply fuse
16 RB2-3666 Right side cabinet cover
17 RG5-4021 Universal power supply
18 RG5-4205 Cabinet stabilizer (outrigger) - With adjustable foot
19 XZ9-0442 Caster wheel - (Four used)
20 RG5-3909 Power supply cable - Between power supply and controller PCA
21 RG5-4441 Front LED PCA - LED status display board
22 RG5-4203 Outrigger adjustable foot - Adjusts up and down
23 R98-1007 Tray 4 assembly - Complete tray with identification label
24 R98-1006 Tray 5 assembly - Complete tray with identification label
25 RF5-2556 Positioning pin - Metal locating pins - Set of three - Maintains proper alignment of printer and optional paper feeder
26 RF5-2766 Paper tray top cover - Includes label
27 RB2-3705 Latch spacer - Black plastic piece that latch engages
28 XZ9-0379 Door latch insert (Black) - Door latch (Black) - For front access door
29 RG5-1845 Paper size sensor board - Used to sense paper size in upper and lower paper trays
30 RG5-4440 Main cable on input assembly
